Power Strip 6

$130.00

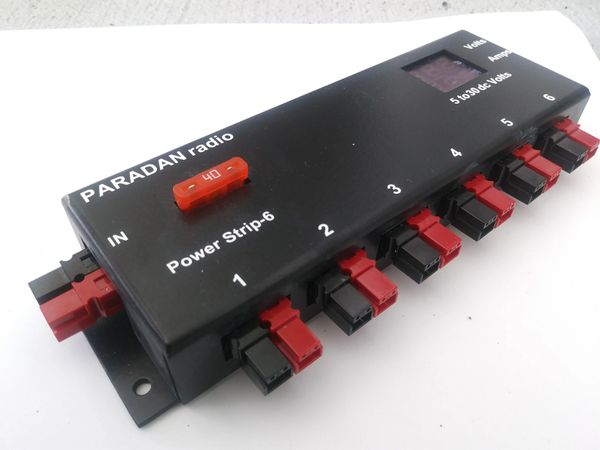

Power Strip 6

Neaten up your station with this 40 Ampere metered power strip.  It is ideal in your station and especially for mobile and go-boxes.  The horizontal design permits easy fan out from the six Anderson Powerpole outputs.  The bright LED accurately displays both the DC Voltage and the Total Current in Amperes.     It is housed in a sturdy metal case.  The input is fused, and the strip is RF filtered.   Anderson locking clips may be used to secure the connections.  The DC current is measured on the negative lead. The chassis is isolated from the negative lead.  Includes 7 Powerpole pairs.


Specifications:

Voltage:  5 to 30Volts

Current:  40 Amperes total

Meter:  7 Segment Red LED for Voltage, 7 segment Blue LED for current

Meter Accuracy:  Voltage:  + 1 %, 0.1 volt, Current:  + 3%, Residual <0.2 Amp

Current Sense Resistor:  5 milliohms

Fuses:  40A  ATC included.  It may be changed

Connectors: 40 amp Anderson Powerpoles

Enclosure:  Black painted aluminum

Dimensions:  7.1 x 2.2 x 1.0 inches.  Powerpoles protrude 0.6 inches

Mounting Holes:  For #6 hardware

Mounting Centers:  6.7 x 1.4 inches

Weight:  7.5 oz., 190 g
